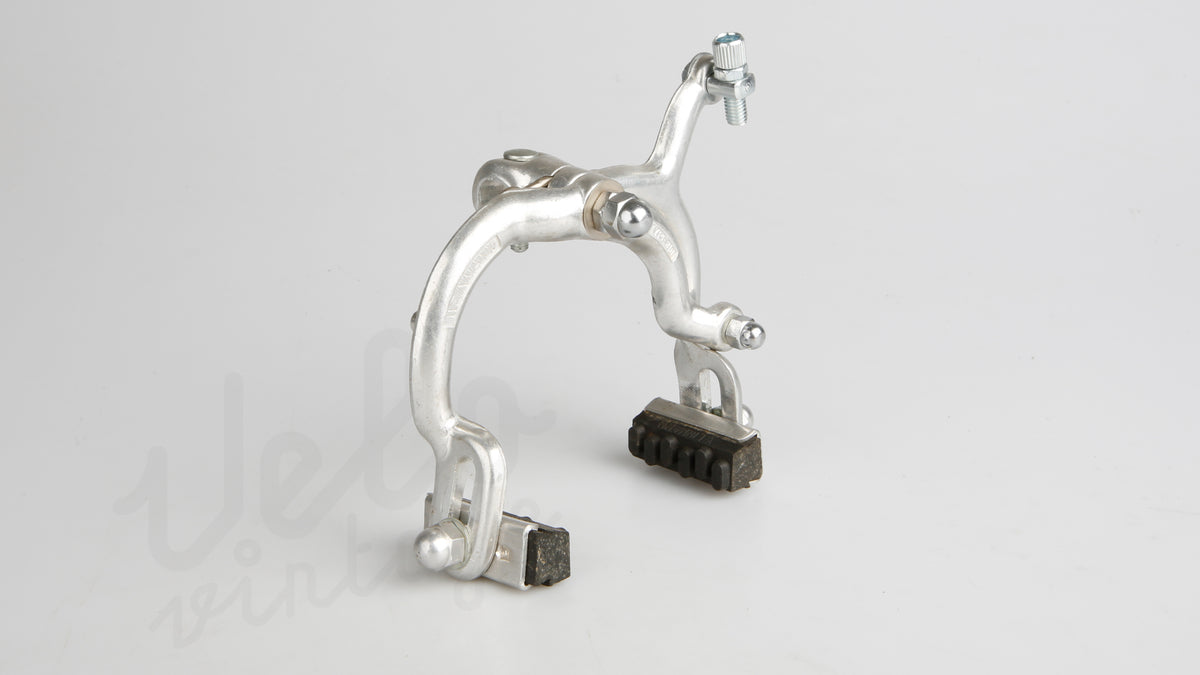

NOS Weinmann Type 810 rear brake with top-mount bracket | Reach 61-79mm (long reach)

€27,95
Weinmann

Delivery in 2-6 business days – In stock and dispatched quickly.

1 in stock

Weinmann Type 810 with the special top mounting, which was used on some European bicycles in the 1970s and 1980s.

  • The brake is not mounted through a hole in the brake bridge with a standard center bolt.

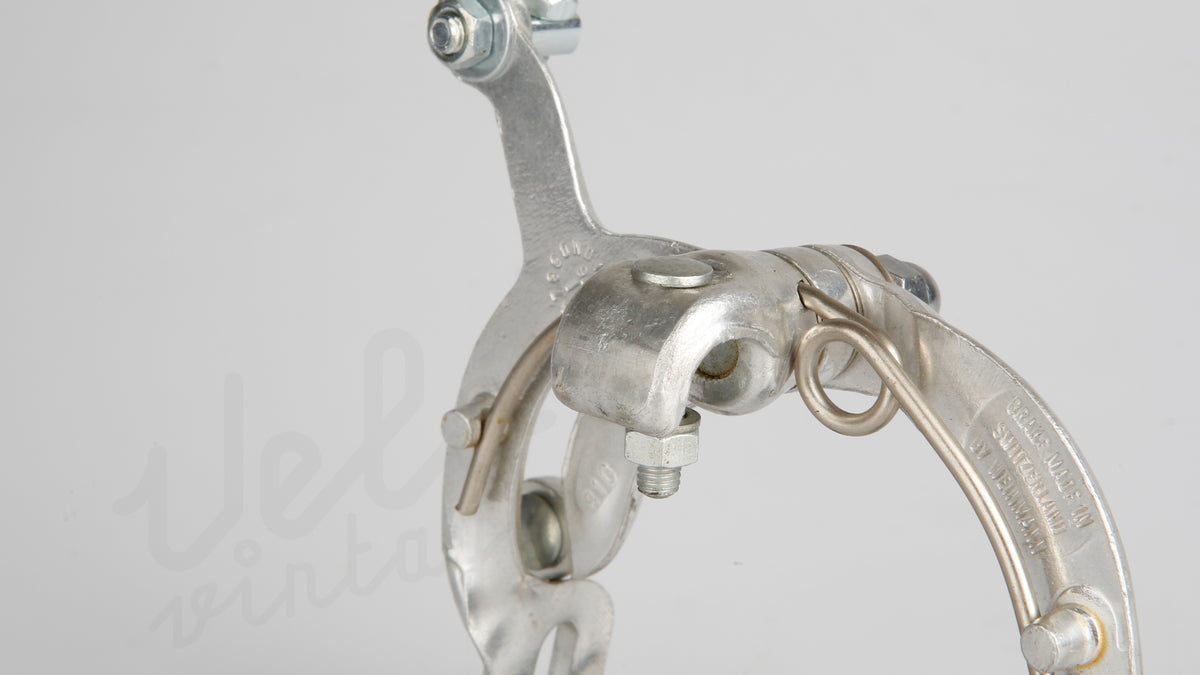

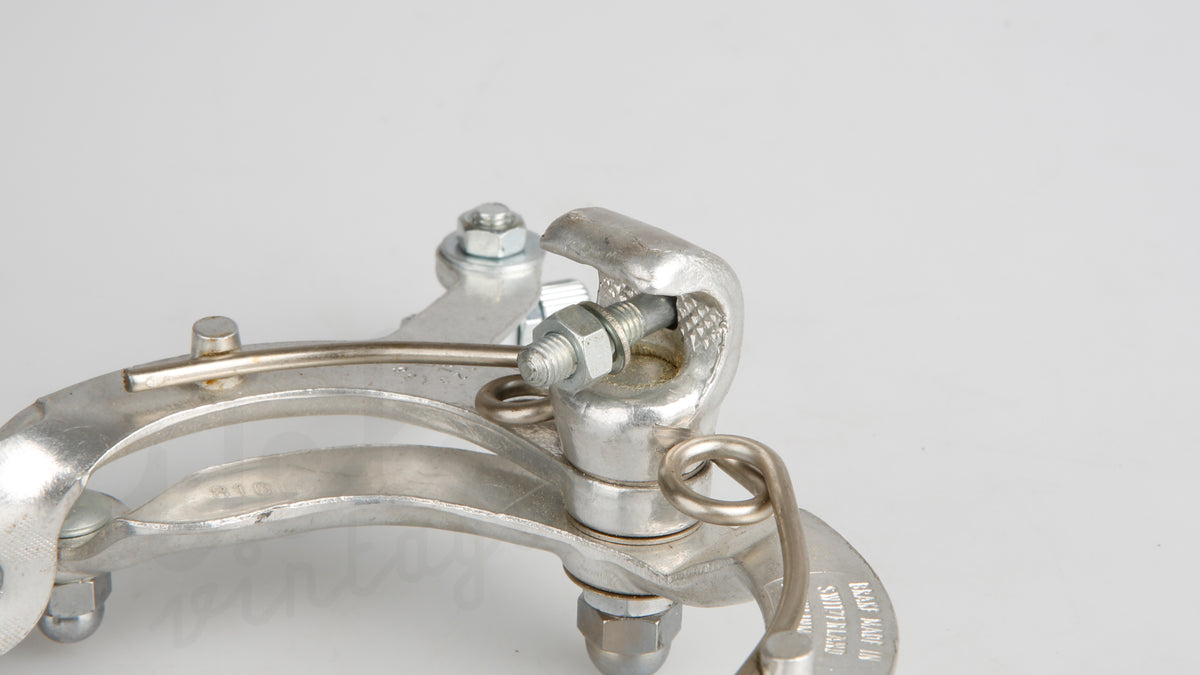

  • Instead, there is a mounting bracket on top of the rear fork's brake bridge.
  • The bracket is secured with a bolt from above.

This solution was used, among others, on some models from:

  • Motobécane
  • Peugeot
  • Gitane
  • Raleigh
  • Batavus
  • Koga-Miyata
Description

Specifications

  • Type: Side-pull rim brake (single pivot)
  • Position: Rear brake
  • Reach: 61–79 mm (long reach)
  • Mounting: Note: special top-mounted version.
  • Brake pads: Weinmann replaceable brake pads
  • Material: Forged aluminum with steel bolts
  • Weight: Approx. 140 g
  • Production period: 1970s
